Guy the A-Frame

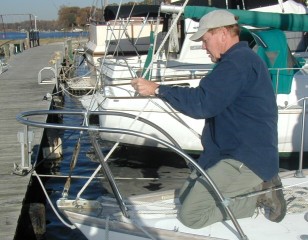

Now that the frame is standing, attach the forestay firmly to a bow cleat or stem fitting.

Using a trucker's hitch, get two-part purchase on the line to get it taut before securing.

Then follow the same procedure for the backstay. It's best to go through the open base of the cleat.

When properly adjusted the frame will be about 4 inches behind the mast at the top. It should be as close as possible without causing the tackle to bind up.

Raise the A-Frame <-Previous   Next-> Attach the Tackle
